Introduction

Oroantral communication (OAC) poses problems with phonation, nasal regurgitation, and oral hygiene that may complicate chronic rhinosinusitis [1].

Several techniques have been described for the closure of OAC. The obturator prosthesis was the first described technique that had the disadvantages of not completely closing OAC and was intolerable in the long-term. Palatal plates can be a temporary solutions before surgery to protect the surgical site.

The prevention of OAC and palatal fistulas in patients requiring multiple surgical intervention is too complicated for palatoplasties and localized procedures.

The frontal tongue flap was introduced in France in the 1970s by Gosserez [2], it has the advantage of being reliable and easy to perform.

Here, we present the case in which a tongue flap procedure was used for closing an OAC.

Observations

A 40-year-old patient with no specific past medical history consulted us with for an OAC that occurred 3 months ago. OAC occurred after surgical resection and postoperative radiotherapy for a cystic adenoid palatal carcinoma (Fig. 1). The patient reported that she had already undergone local palatoplasty on two separate occasions. The test found an OAC of approximately 2 cm in diameter within a scarred palate.

We decided to close OAC with a tongue flap after informing the patient regarding the need for a second procedure after 3 weeks of warm mixed feeding.

The first surgery was performed under general anesthesia with nasotracheal intubation. After the debris from OAC had been cleared, the tongue flap was stretched across the lingual median furrow as needed, according to the gap that needed to be covered.

After administering xylocaine mixed with adrenaline, a tracer incision was marked and an incision was made over it. A 5-mm-thick musculomucosal flap with an anterior pedicle was grafted.

The posterior end of the lingual flap was sutured to the anterior margin of the OAC with interrupted Vicryl 4/0 sutures (Figs. 2 and 3);

The lingual donor area was closed with Vicryl 3/0 sutures, and the patient was placed on amoxicillin, clavulanic acid, paracetamol, and mouthwash for oral hygiene. A lukewarm mixed diet was prescribed. The surgical procedure was performed without any complications and the wound healed after 10 days.

After 3 weeks the second procedure was performed under local anesthesia, where the base of the flap was sutured to the posterior margin of OAC. The surgical procedure was performed without any complications and the wound healed after 10 days. As a precaution a lukewarm mixed diet was prescribed for 10 days, after which the patient was referred to a speech therapist. After 3 months, the healing was satisfactory (Figs. 4 and 5) and phonation was restored to normal.

thumbnail Fig. 1

Oroantral communication.

thumbnail Fig. 2

Edge of the bank and removal of the tongue flap for a marginal pedicle.

thumbnail Fig. 3

Attachment of the flap to the palate.

thumbnail Fig. 4

Result after 3 months.

thumbnail Fig. 5

Tongue after 3 months.

Comments

The aim of this article was to highlight the use of a tongue flap to close an OAC. The closure of an extended OAC, especially in cases with a history of multiple procedures, is a dilemma. Moreover, palatoplasty by local flaps is unsuitable in the context of irradiated tissues.

Many authors have proposed different techniques. Locoregional flaps, such as the buccinator flap, usually with an upper pedicle, are used for closing OACs. Musculomucosal flaps receive blood supply from the facial artery, and nasal flaps received blood supply from the facial artery. The disadvantage with these flaps is the need for the extraction of a molar [3]. The temporalis muscle flap allows for the reconstruction of a wider palate [4].

The use of revascularized flaps such as prebrachial [5], an iliac ridge, and a fasciocutaneous flaps has also been reported. These flaps are indicated when the gap is greater, often resulting from tumor resections or trauma [4].

Tongue flaps were described nearly a century ago by Guerrero-Santos, and were modified by Bakamjian and Gosset [2].

Their advantages are simplicity, efficiency, and reliability, thanks to the vascularity of the tongue, which is supplied by the two lingual arteries, which are branches of the carotid arteries, on either side. In addition, there is no morbidity at the donor site. Each lingual artery has two main branches: one dorsal and the other ventral (the ranine artery). The two dorsal arteries anastomose at the proximal part of the mobile tongue , and the two ventral arteries anastomose at the distal part of the tongue (Fig. 6).

This double vascularization allows different types of tongue flaps [6]: dorsal, ventral, marginal to distal pedicle, marginal pedicle and distal bipedicle (similar to the head of hammerhead sharks).

The lingual flap may be a distal pedicle flap vascularized by the anastomosis of the ventral arteries or a proximal pedicle vascularized by the anastomosis of the dorsal arteries. The latter is not used often because of the risk of the pedicle tearing resulting from the pull from the base of the tongue.

The disadvantages of this technique are the following: two separate surgical procedures, discomfort lasting approximately 3 weeks because of LOM, reduction of lingual mobility, speech problems, and the need for nasogastric intubation in the period between the two procedures (as recommended by some practitioners).

thumbnail Fig. 6

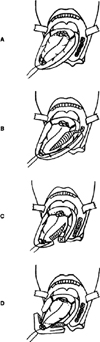

(A) lingual vascularization according to Bracka; (B) marginolingual flap with distal pedicle; (C) marginolingual to proximal pedicle flaps; (D) distal marginolingual bipedicle flap.

Conclusion

Tongue flap is simple and reproducible. It allows the closure of extended OACs in patients who have had multiple surgeries. It is a surgical alternative to obturator prostheses, which are often not well-tolerated by patients in the long-term. The functional and aesthetic results of tongue flaps are excellent, and the surgical procedure is simple.

Conflict of interest

The authors declare that they have no conflicts of interest in relation to this article

References

  1. Smith JC, Kacker A, Anand VK. Midline nasal and hard palate destruction in cocaine's abusers and cocaine’s role in rhinologic practice. Ear Nose Throat J 2002;81:172–177. [PubMed] [Google Scholar]
  2. Gosserez M, Stricker M, Flot F, Gola R, Malka G. Les indications du lambeau de langue dans la réparation des pertes de substance buccale. J F ORL 1973;22:921–923. [Google Scholar]
  3. Noboru O, Takuya O, Yoshinori I. Use of free conchal cartilage graftfor closure of a palatal fistula: an experimental study and clinicalapplication. Plast Reconstr Surg 1993;91:433–440. [CrossRef] [PubMed] [Google Scholar]
  4. Bettega G. La reconstruction du voile du palais. Rev Stomatol, Chir Maxillo-fac Chir Orale 2013;114:24–33. [Google Scholar]
  5. Macleod AM, Morrison WA, McCann JJ, Thislethwaite S, Vanderkolk CA, Ryan AD. The free radial forearm with and without bone for closure of large palatal fistulae. Br J Plast Surg 1987;40:391–395. [CrossRef] [PubMed] [Google Scholar]
  6. Bracka A. The blood supply of dorsal tongue flaps. Br J Plast Surg 1981;34:379–384. [CrossRef] [PubMed] [Google Scholar]
